IP Telephony

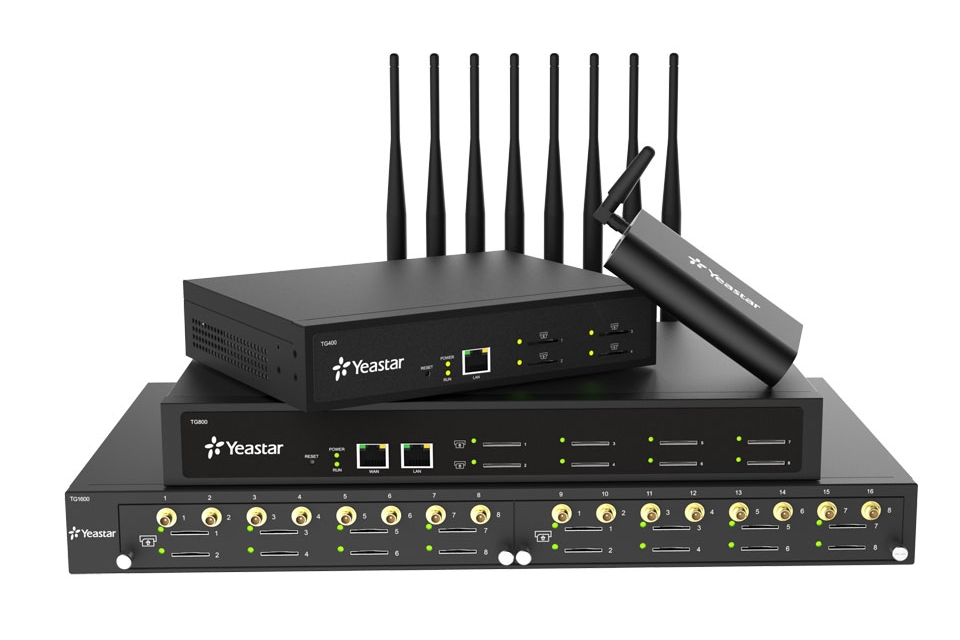

Yeastar TG Series VoIP GSM GatewayTG100 / TG200 / TG400 / TG800 / TG1600
Yeastar TG Series VoIP GSM Gateways connect GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based telephone systems including Yeastar IP Phone Systems, and softswitches to a GSM or 3G WCDMA or 4G LTE; which can provide a sophisticated fallback solution when landlines go down, or be used to increase call traffic capacity by providing additional dial-tone.
Features
|
|
Benefits
- GSM Voice Calls
- VoLTE for HD Calls
- Maximum Cost Reduction
- Top Quality and Reliability
- Mobile Connectivity for SMB
| Models* | TG100 | TG200 | TG400 | TG800 | TG1600 |
| Number of Ports | 1 | 2 | 4 | 8 | 16 |
| GSM Frequency** | 850/900/1800/1900 MHz | ||||
| WCDMA Frequency** | 850/1900 MHz, 850/2100 MHz, 900/2100 MHz | ||||
| 4G Data | – | ||||
| 4G LTE Band** | Don’t support 4G LTE | Depending on the module type. Check the supported band and operators. | Don’t support 4G LTE | ||
| Protocol | SIP, IAX2 | ||||
| Antenna Splitter (4 in 1) | – | Support | |||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | ||||
| DTMF Mode | RFC2833, SIP Info, In-band | ||||
| Echo Cancellation | ITU-T G.168 LEC | ||||
| Calling Type | Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) | ||||
| Console Port | – | 1 | |||
| Network Protocol | FTP, TFTP, HTTP, SSH | ||||
| LAN | 1 10/100 Mbps Ethernet Interface | 2 10/100 Mbps Ethernet Interfaces | |||
| NAT Traversal | Static NAT, STUN | ||||
| Network | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN | ||||
| Operation Range | 0°C to 40°C, 32°F to 104°F | ||||
| Power Supply | DC 12V, 1A | AC 100-240V | |||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||||
| Dimensions (L × W × H) (mm) | 110 x 70 x 24 | 213 x 160 x 44 | 340 x 210 x 44 | 440 x 250 x 44 | |
| Humidity | 10-90% non-condensing | ||||
| Models* | TG100 | TG200 | TG400 | TG800 | TG1600 |
| Number of Ports | 1 | 2 | 4 | 8 | 16 |
| GSM Frequency** |
850/900 /1800/1900 MHz |
||||
| WCDMA Frequency** |
850/1900 MHz, 850/2100 MHz, 900/2100 MHz |
||||
| 4G Data | – | ||||
| 4G LTE Band** | Don’t support 4G LTE | Depending on the module type. Check the supported band and operators. | Don’t support 4G LTE | ||
| Protocol | SIP, IAX2 | ||||
| Antenna Splitter (4 in 1) | – | Support | |||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Voice Codec |
G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex |
||||
| DTMF Mode |
RFC2833, SIP Info, In-band |
||||
| Echo Cancellation | ITU-T G.168 LEC | ||||
| Calling Type |
Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) |
||||
| Console Port | – | 1 | |||
| Network Protocol | FTP, TFTP, HTTP, SSH | ||||
| LAN |
1 10/100 Mbps Ethernet Interface |
2 10/100 Mbps Ethernet Interfaces |
|||
| NAT Traversal | Static NAT, STUN | ||||
| Network |
DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN |
||||
| Operation Range |
0°C to 40°C, 32°F to 104°F |
||||
| Power Supply | DC 12V, 1A | AC 100-240V | |||
| Storage Range |
-20°C to 65°C, -4°F to 149°F |
||||
| Dimensions (L × W × H) (mm) | 110 x 70 x 24 | 213 x 160 x 44 | 340 x 210 x 44 | 440 x 250 x 44 | |
| Humidity |
10-90% non-condensing |
||||
*You could order either GSM or 3G or 4G channel. TG100 and TG1600 do not support 4G LTE.
**Click here to check the frequency/band and cellular operators supported by TG GSM VoIP Gateway.
