Yeastar TA Series FXS VoIP Gateway
TA400 / TA800 / TA1600 / TA2400 / TA3200
Yeastar TA FXS VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system, including the Yeastar S-Series.
- Feature-rich
A robust feature set that fulfills your various needs and cuts communication cost - Easy
Simple and intuitive Web-based configuration saves you loads of time - Reliable
Stable with advanced hardware and software architecture - Interoperability
Interoperable with a broad list of softswitch, PBX, and IP-PBX like Elastix and Lync Server
Features
|
|
Benefits
- Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
- Fully compliant with SIP and IAX2, also features lexible calling rules.
| Models | TA400 | TA800 | TA1600 | TA2400 | TA3200 |
| RJ11 FXS Ports | 4 | 8 | 16 | 24 | 32 |
| RJ 21 Ports | 一 | 一 | 1 | 1 | 2 |
| LAN | 1 10/100Mbps | ||||
| WAN | 一 | 1 10/100Mbps | |||
| Protocol | SIP (RFC3261), IAX2 | ||||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | ||||
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | ||||
| DTMF Mode | RFC2833, SIP Info, In-band | ||||
| Fax | T.38 and Pass-through | ||||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | ||||
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | ||||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | ||||
| Management Protocol | RADIUS, TR-069 | SNMP, RADIUS, TR-069 | |||
| Remote Management | N/A | Yes | |||
| Signaling | FXS Loop Start, FXS Kewl Start | ||||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | ||||
| Disconnect Methods | Busy Tone, Polarity Reversal | ||||
| Power | 12V, 1A | AC 100-240V (12V 5A) | |||
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | 440 × 250 × 44 | |||
| Operation Range | 0°C to 40°C, 32°F to 104°F; | ||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||||
| Humidity | 10-90% non-condensing | ||||
| Mounting | Desktop, Wall-mount | Desktop, Rack-mount | |||
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft | ||||
| Models | TA400 | TA800 | TA1600 | TA2400 | TA3200 |
| RJ11 FXS Ports | 4 | 8 | 16 | 24 | 32 |
| RJ 21 Ports | 一 | 一 | 1 | 1 | 2 |
| LAN |
1 10/100 Mbps |
||||
| WAN | 一 |
1 10/100 Mbps |
|||
| Protocol |
SIP (RFC3261), IAX2 |
||||
| Transport |
UDP, TCP, TLS, SRTP |
||||
| Codec |
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM |
||||
| Voice Capability |
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC |
||||
| DTMF Mode |
RFC2833, SIP Info, In-band |
||||
| Fax |
T.38 and Pass-through |
||||
| QoS |
DiffServ, ToS, 802.1 P/Q VLAN tagging |
||||
| Network |
DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN |
||||
| Network Protocol |
FTP, TFTP, HTTP, HTTPS, SSH |
||||
| Management Protocol |
RADIUS, TR-069 |
SNMP, RADIUS, TR-069 |
|||
| Remote Management | N/A | Yes | |||
| Signaling |
FXS Loop Start, FXS Kewl Start |
||||
| Caller ID |
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
||||
| Disconnect Methods |
Busy Tone, Polarity Reversal |
||||
| Power | 12V, 1A |
AC 100 -240V (12V 5A) |
|||
|
Dimensions (L × W × H) (mm) |
200 × 137 × 25 | 440 × 250 × 44 | |||
| Operation Range |
0°C to 40°C, 32°F to 104°F; |
||||
| Storage Range |
-20°C to 65°C, -4°F to 149°F |
||||
| Humidity |
10-90% non-condensing |
||||
| Mounting |
Desktop, Wall-mount |
Desktop, Rack-mount |
|||
| Compatibility |
Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft |
||||

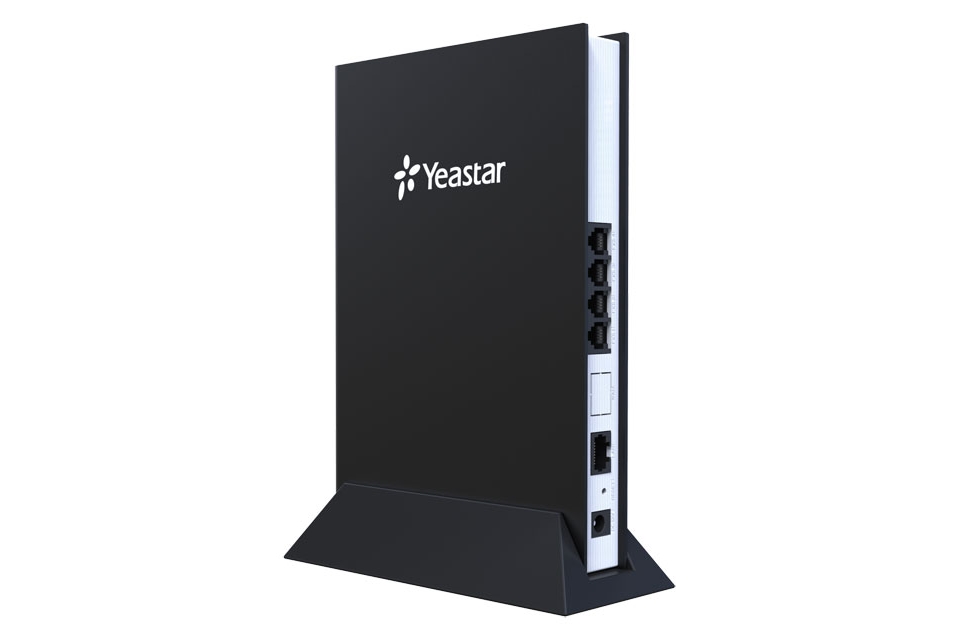

TA400

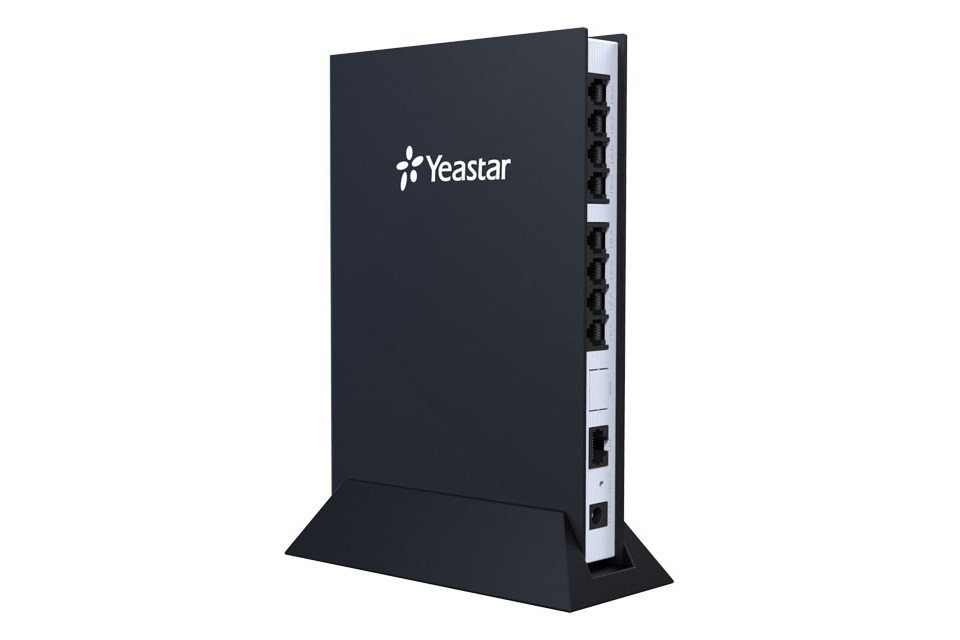

TA800

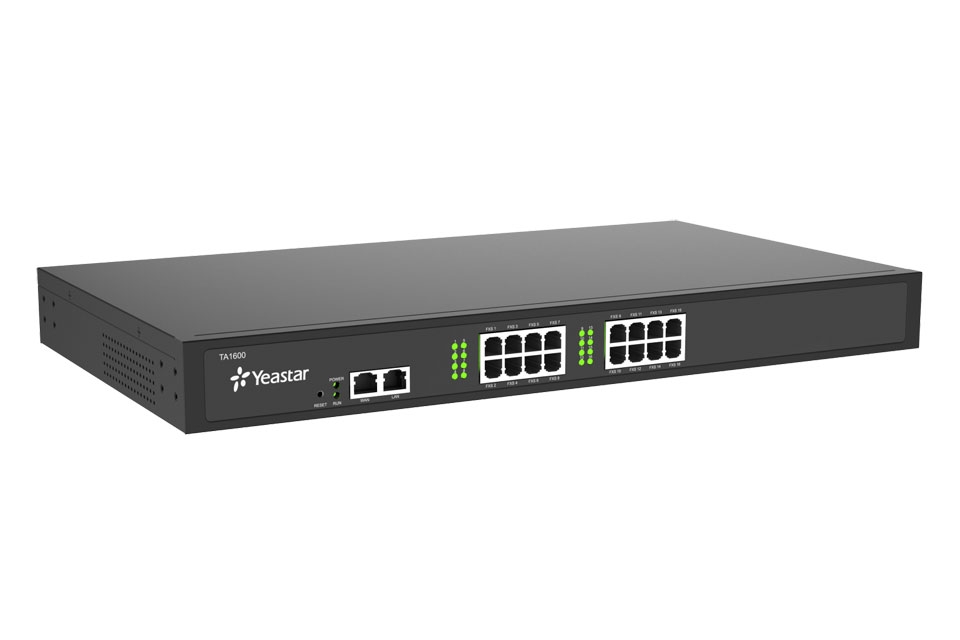

TA1600

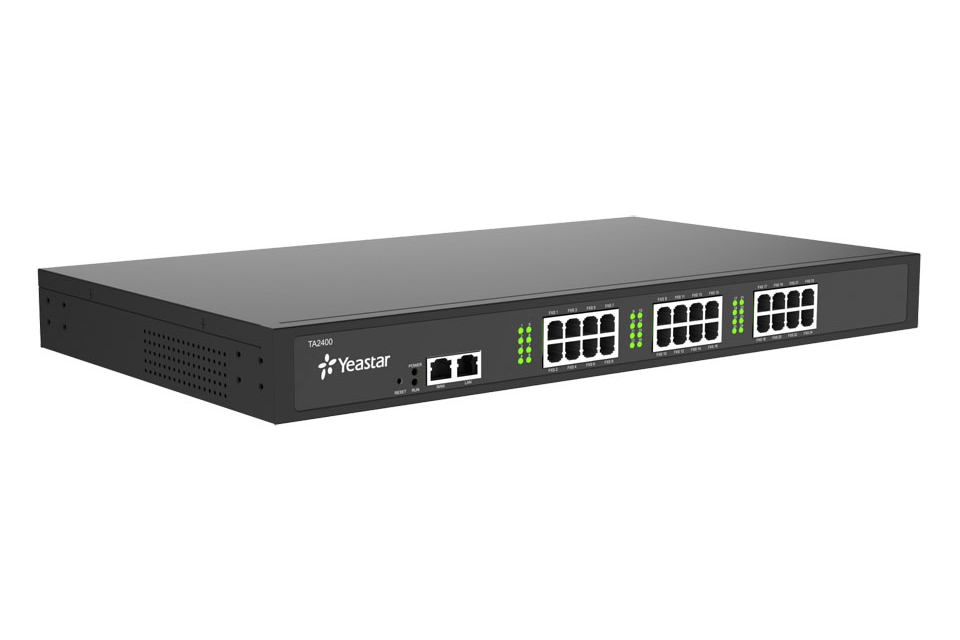

TA2400

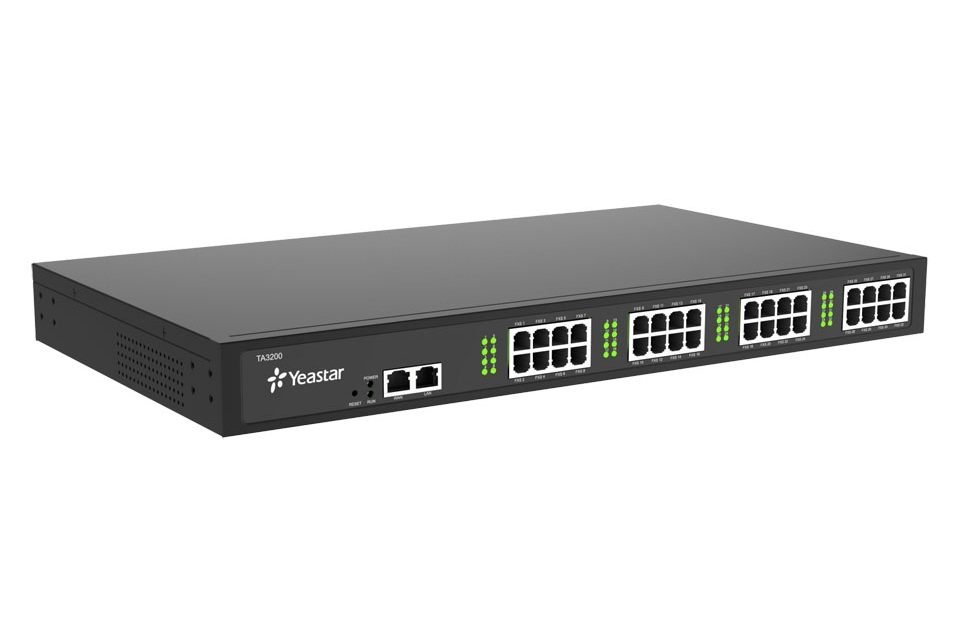

TA3200
